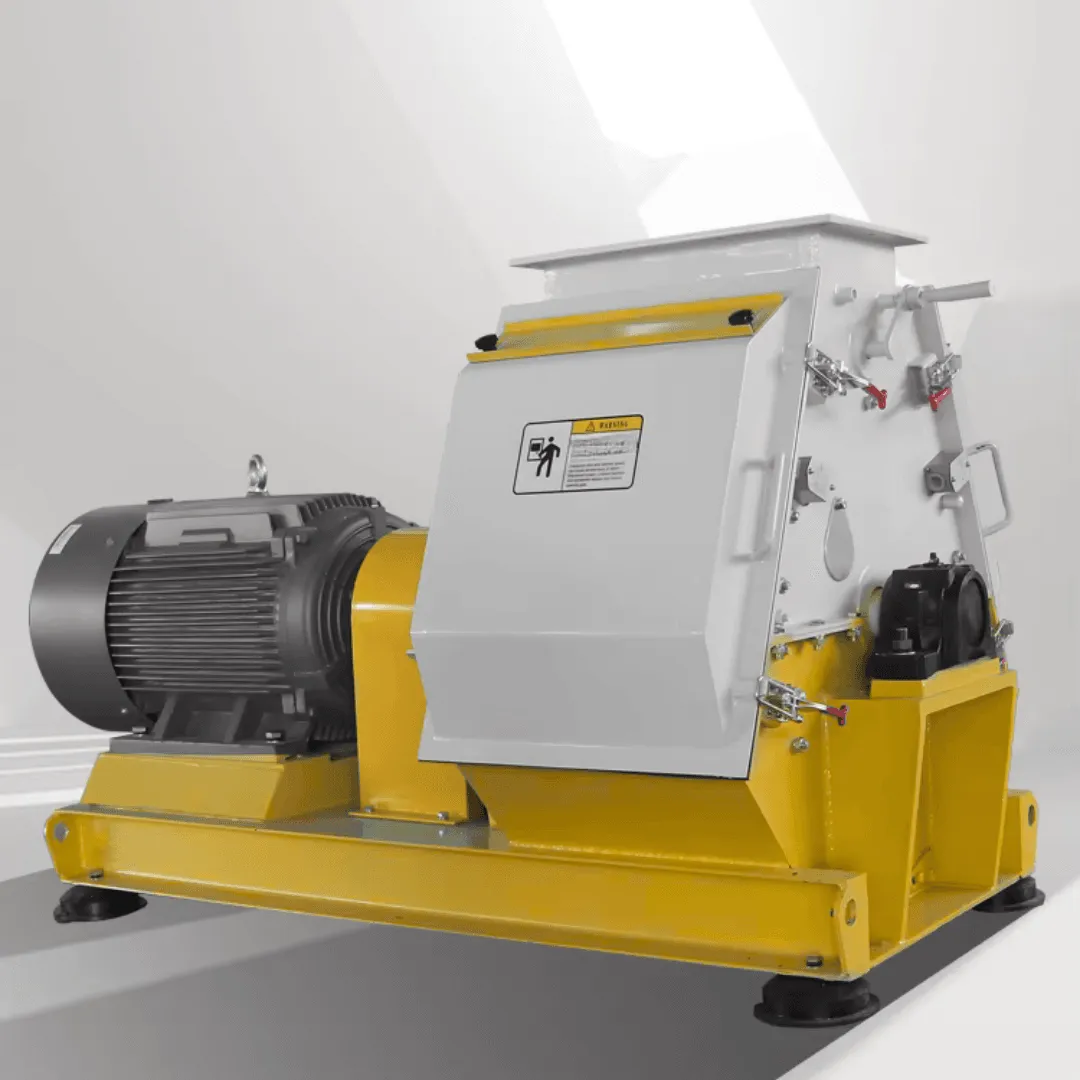

AFSB 75 — Hammer mill refiner 75 kW
Industrial refiner 75 kW, Ø800 mm chamber, 88 hammers, 1,600 kg/h. For sustained production lines: pellets, particle board, animal bedding.
Starting from32 500€ excl. VAT
IndustrialKey features
- Adjustable granulometry from 0.5 to 12 mm by screen change
- Tungsten carbide hammers for extended lifespan
- High-strength 65Mn steel screen
- High-speed rotor (2,980 rpm, 102 m/s) for optimal refining
- Robust design for intensive operation
- Compatible with cyclone, rotary valve and filter sleeves
Specs
Technical specifications
PropertyValue
Motor power75 kW
Throughput1 600 kg/h
Number of hammers88
Diamètre chambre de broyageØ 800 mm
Output granulometry0,5 – 12 mm (selon grille)
Vitesse rotor2 980 tr/min
Vitesse linéaire102 m/s
Matériau marteauxCarbure de tungstène
Matériau grilleAcier 65Mn
